Interpreting Electrical Plans
See Planning and Preparation for information about reading plans that have Levven markup / redlines.
Controller Group
The power controllers in your Quick Kit are grouped with each other and with the Levven Q Gateway to form the home group. If the installation requires more controllers than what the Quick Kit included, add more controllers to your installation's "home group". See Adding Extra Controllers in the Using Levven Quick Kits guide for a full explanation.
If a Quick Kit has fewer controllers than are needed for your installation, take additional controllers from your shelf stock / spare parts inventory.
Do not take controllers from another kit to make up the difference! Those Quick Kits have already been configured for other installations.
Trimming Junction Boxes
Find a wiring diagram for your scenario:

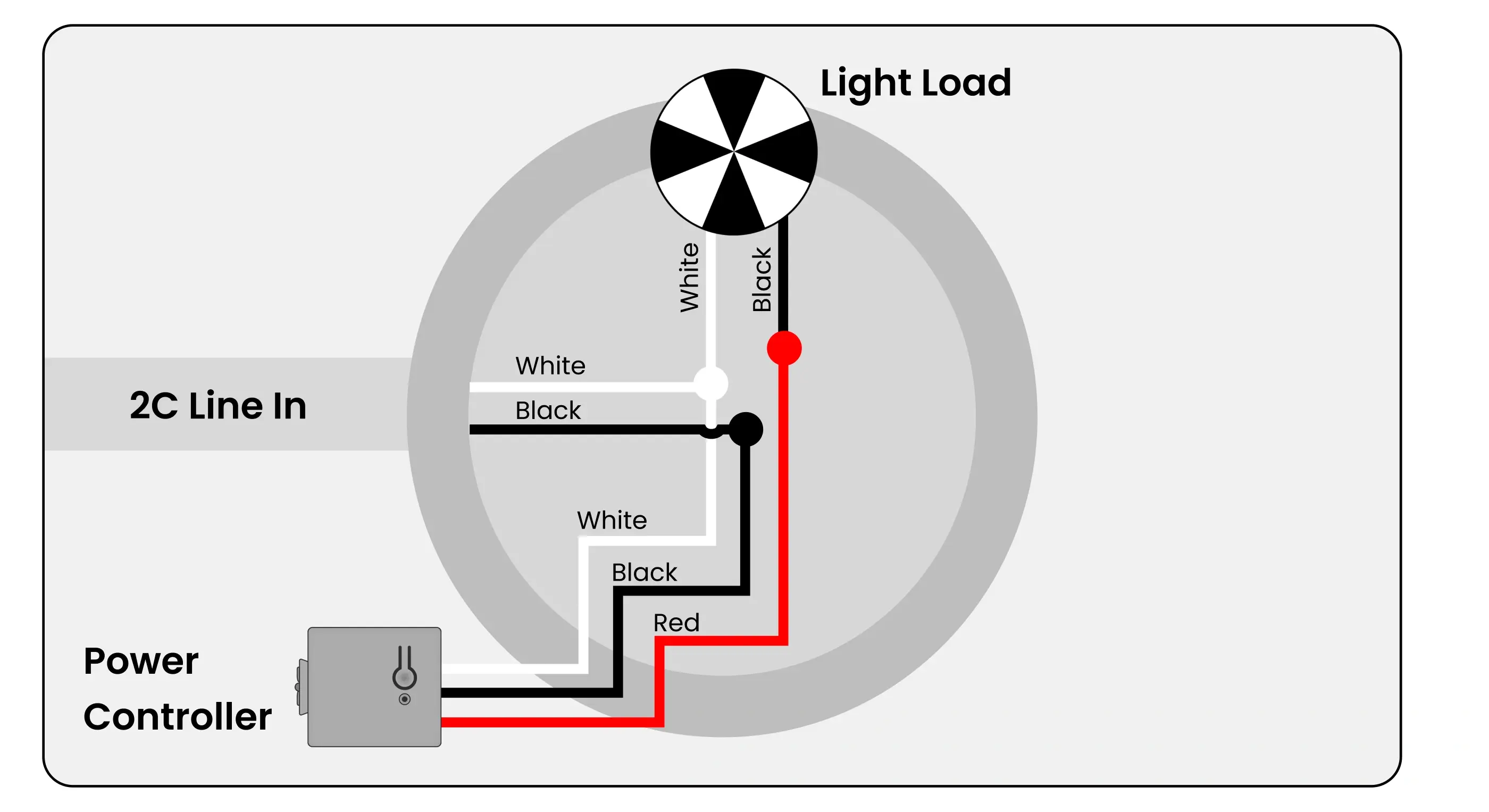

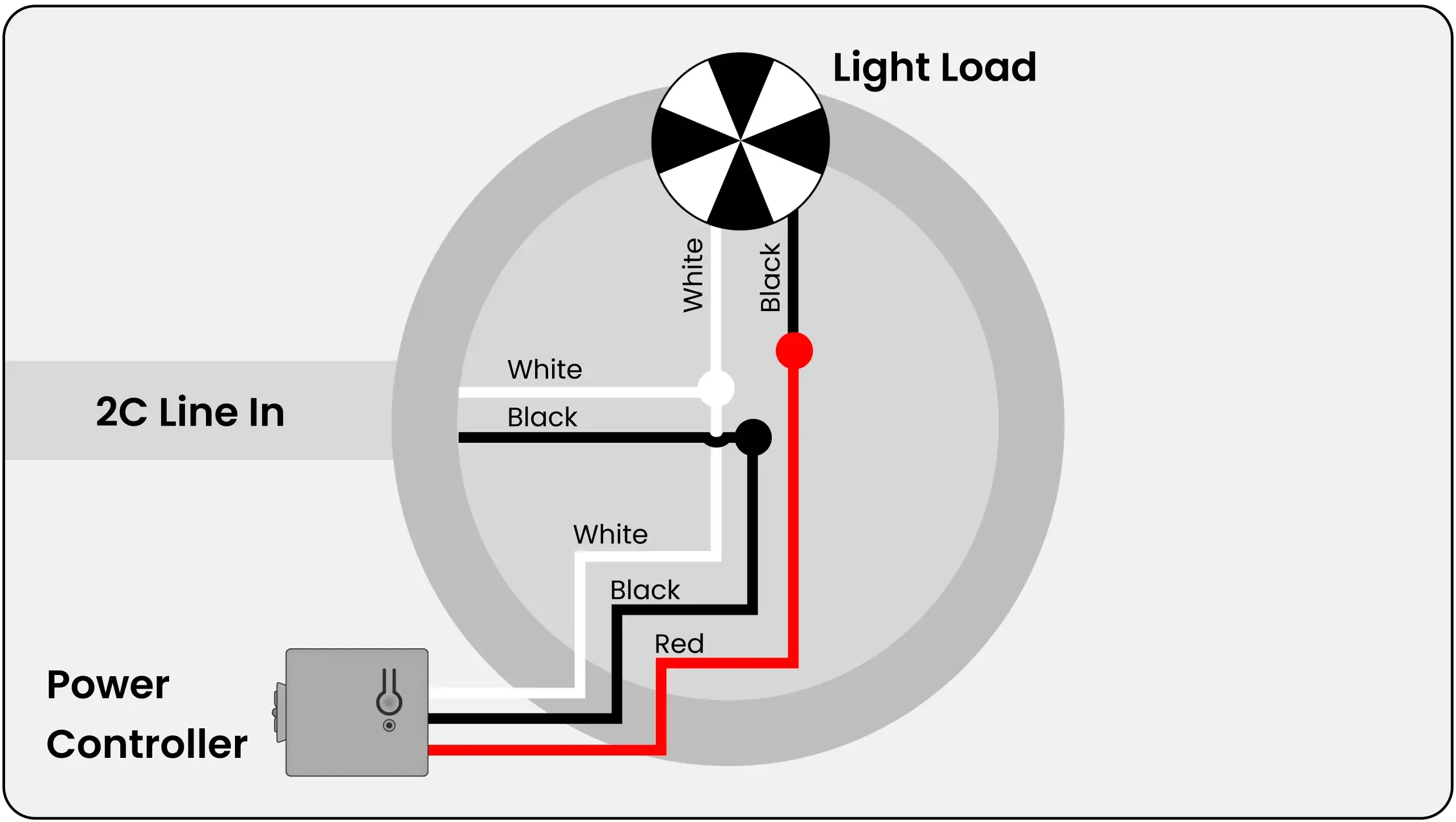

Controller and Switched Load in the Same Junction Box

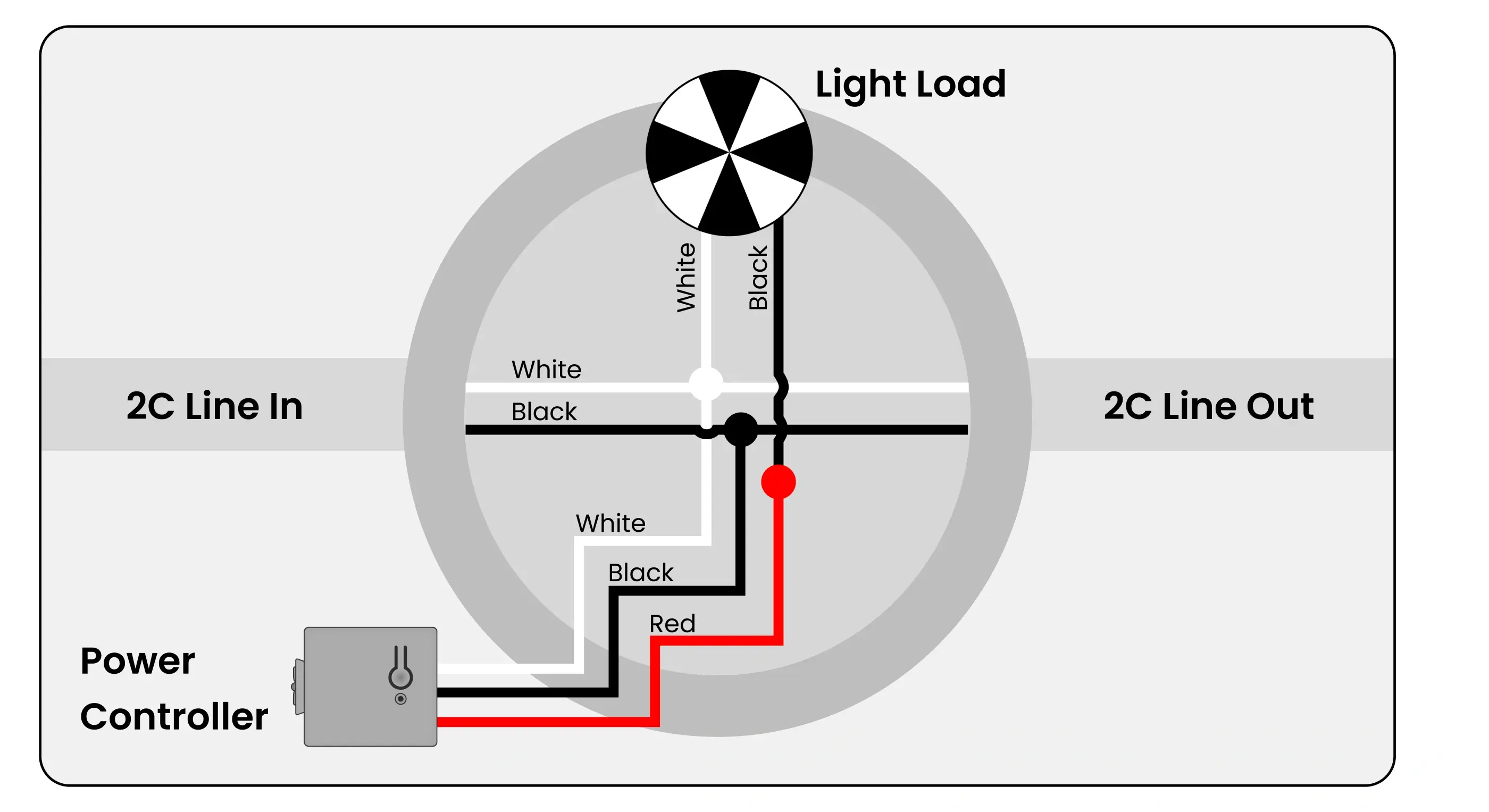

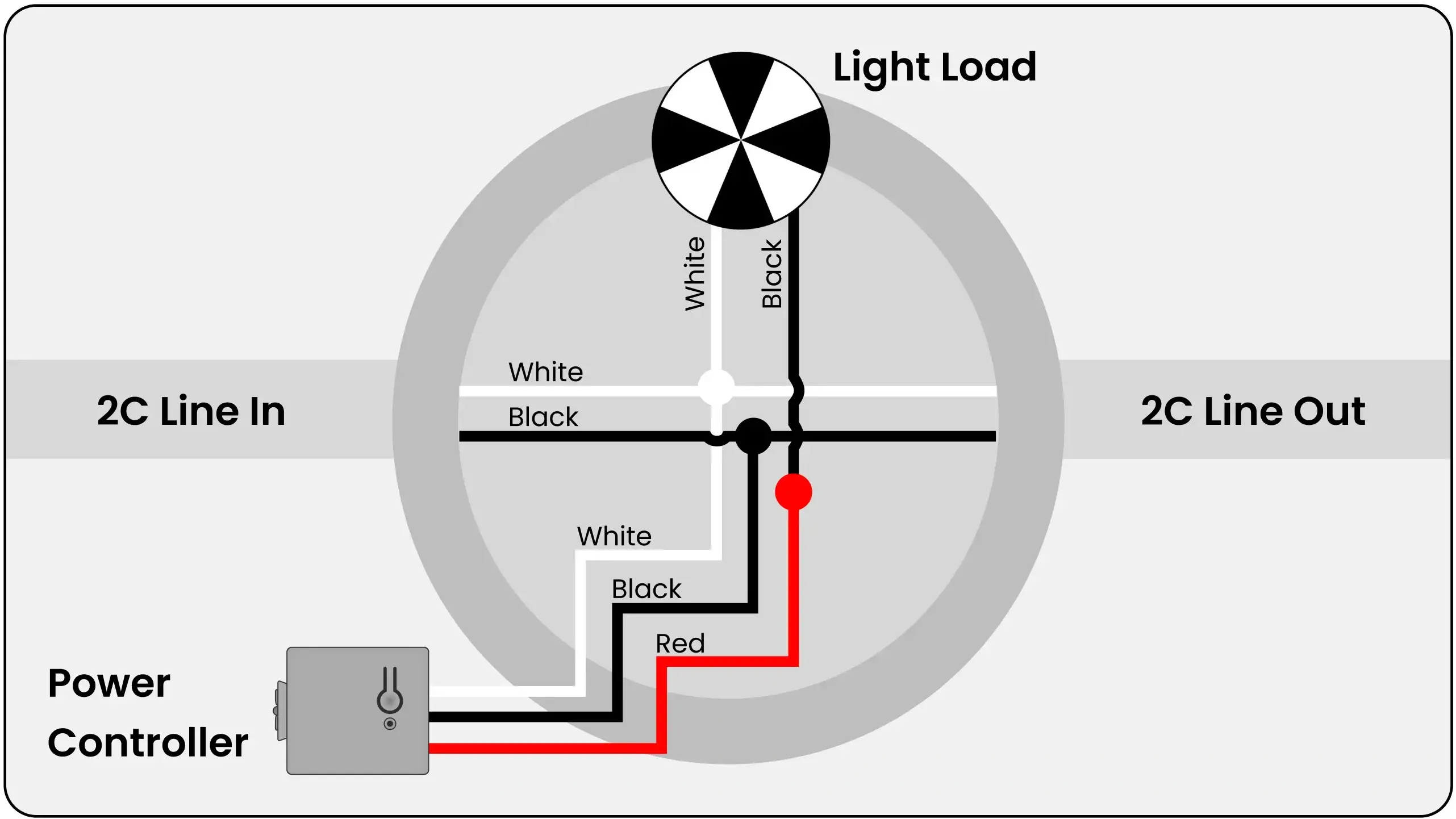

Controller + Load In Box with Power for Next Box

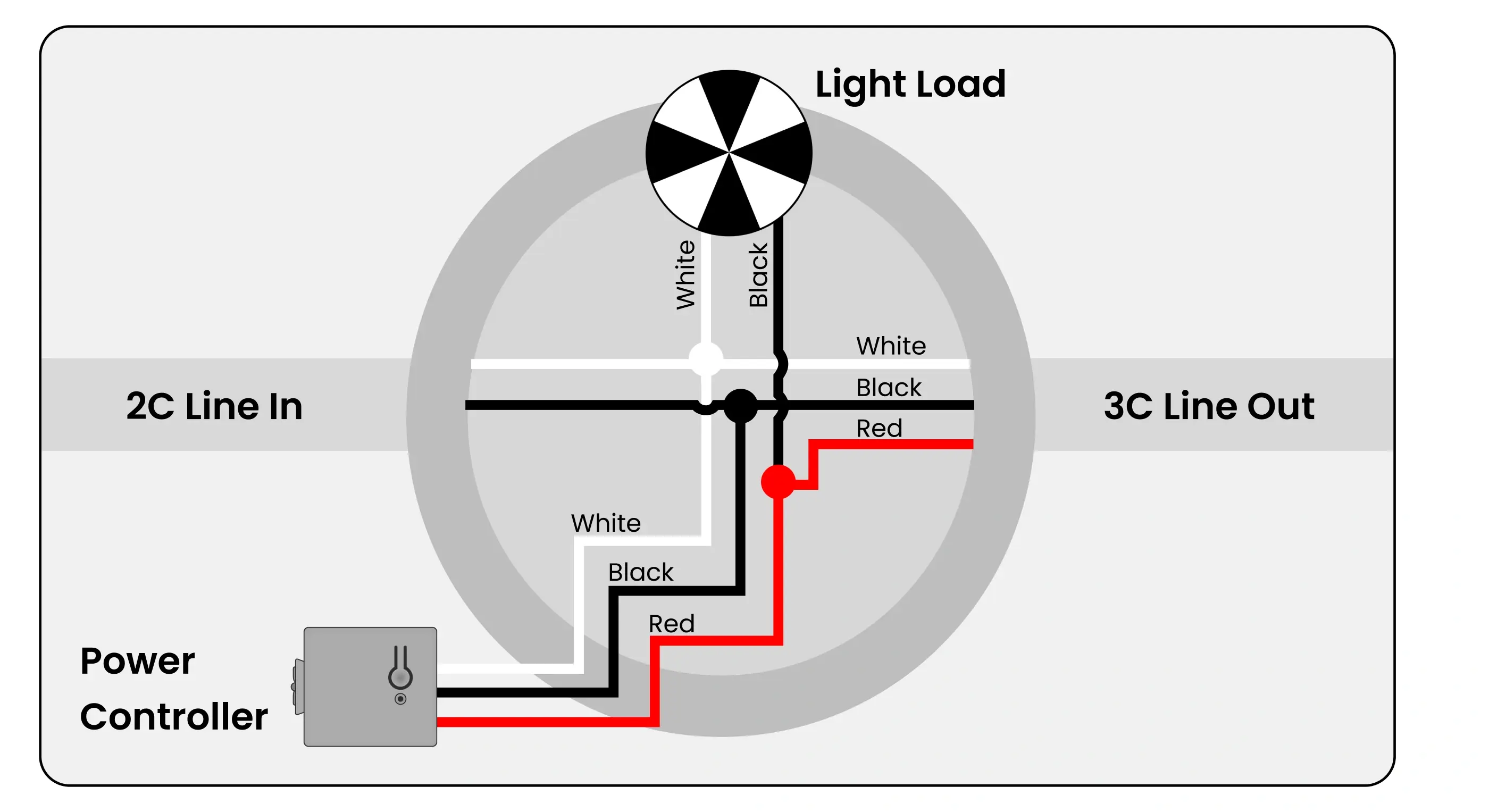

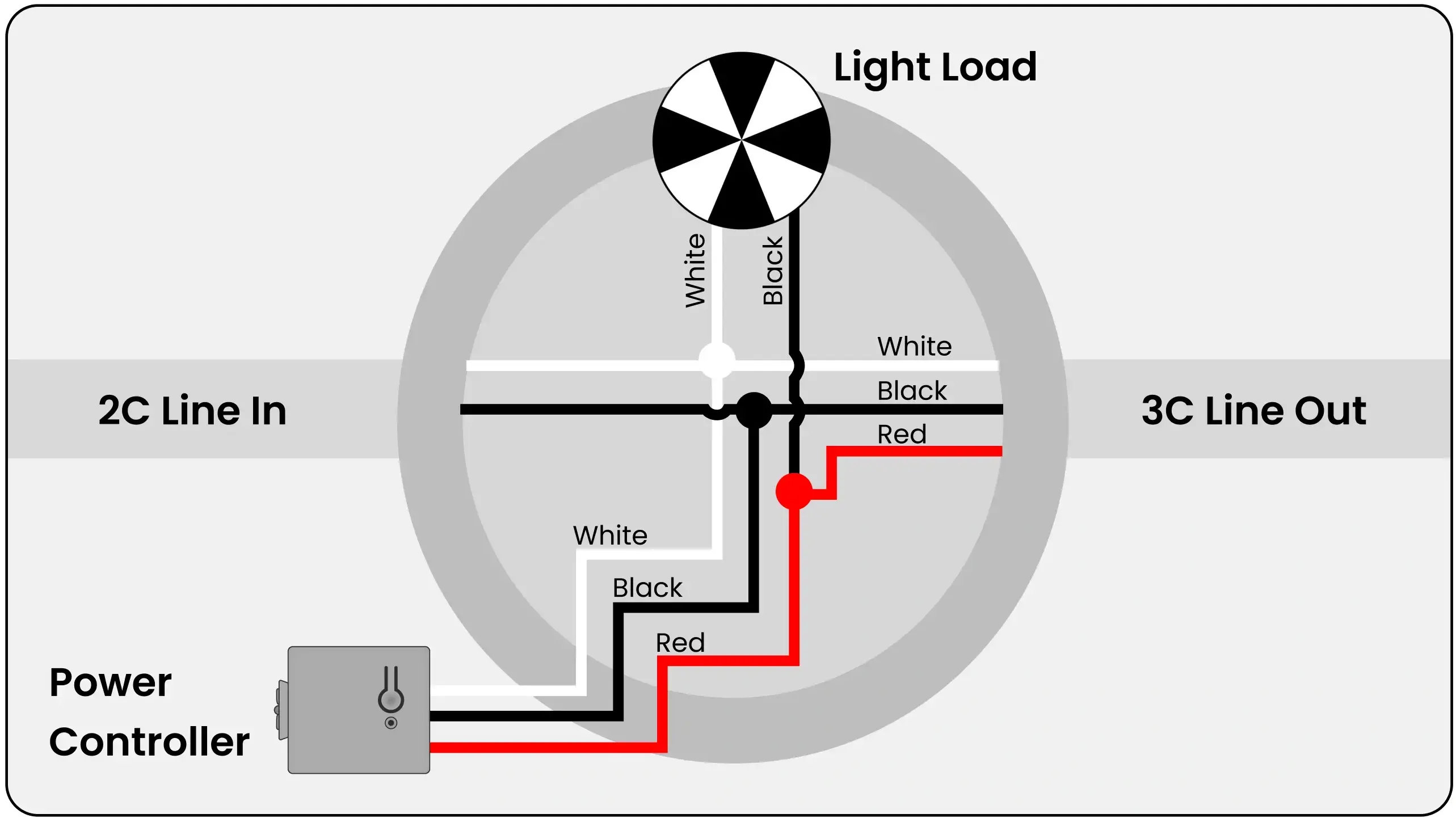

Controller + Load with 3-Conductor Power for Next Box
Power Controller and Switched Load in Different Boxes
Example: Light fixture mounted on one box, power controller installed in a different box.

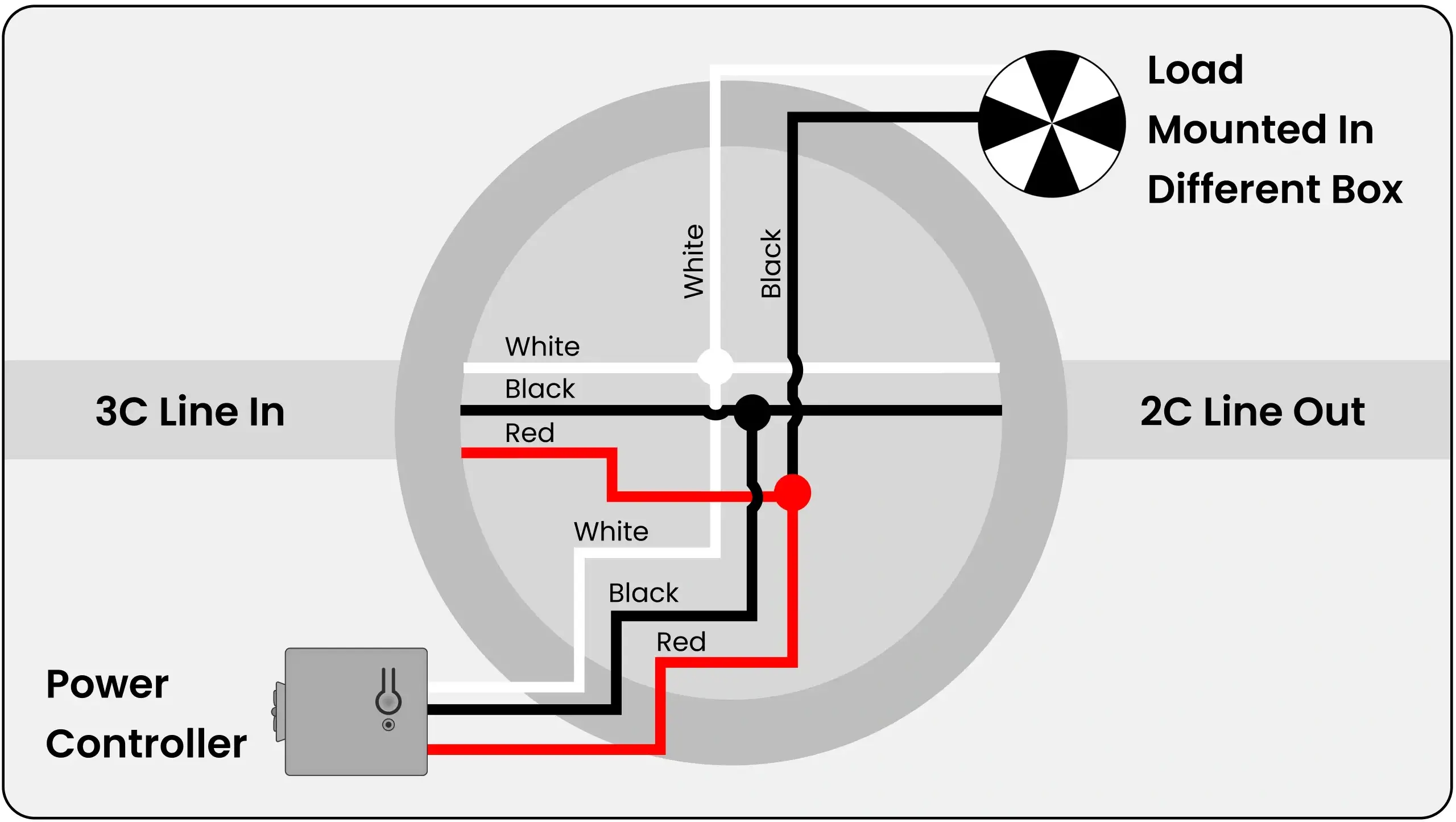

Controller Switching a Load in Different Box

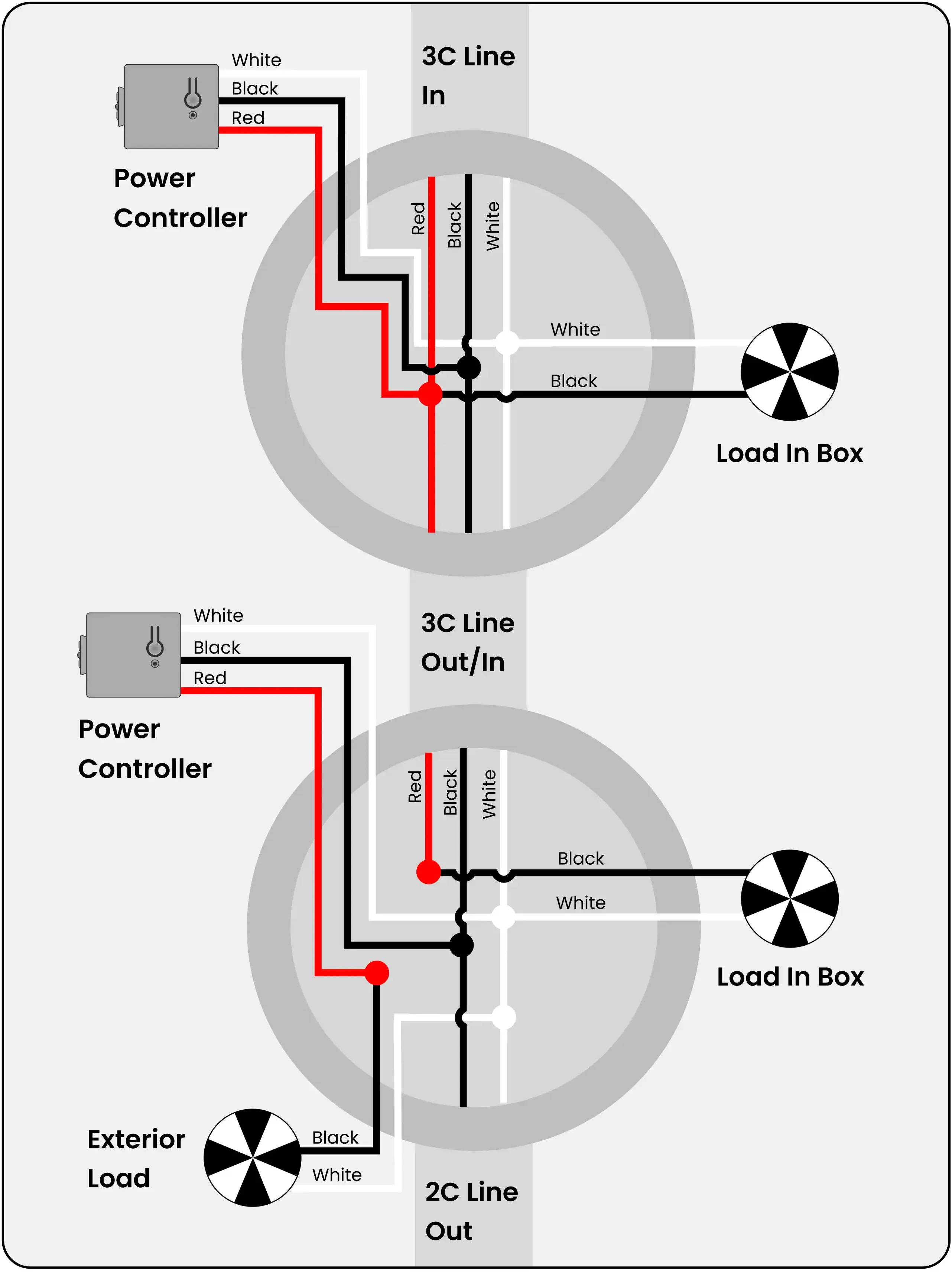

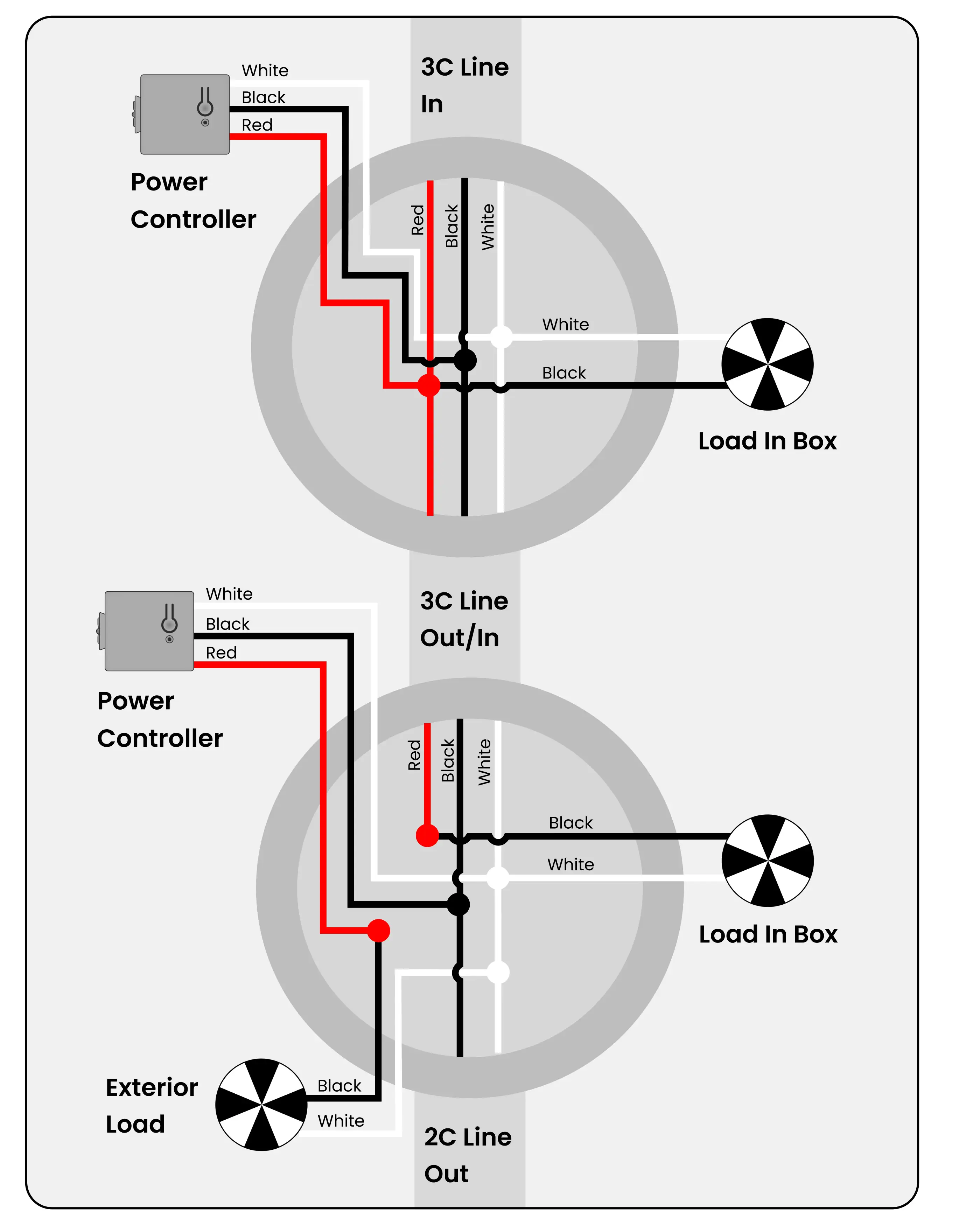

Controlling Multiple Loads with One Controller, and Controlling an Exterior Load with a Second Controller

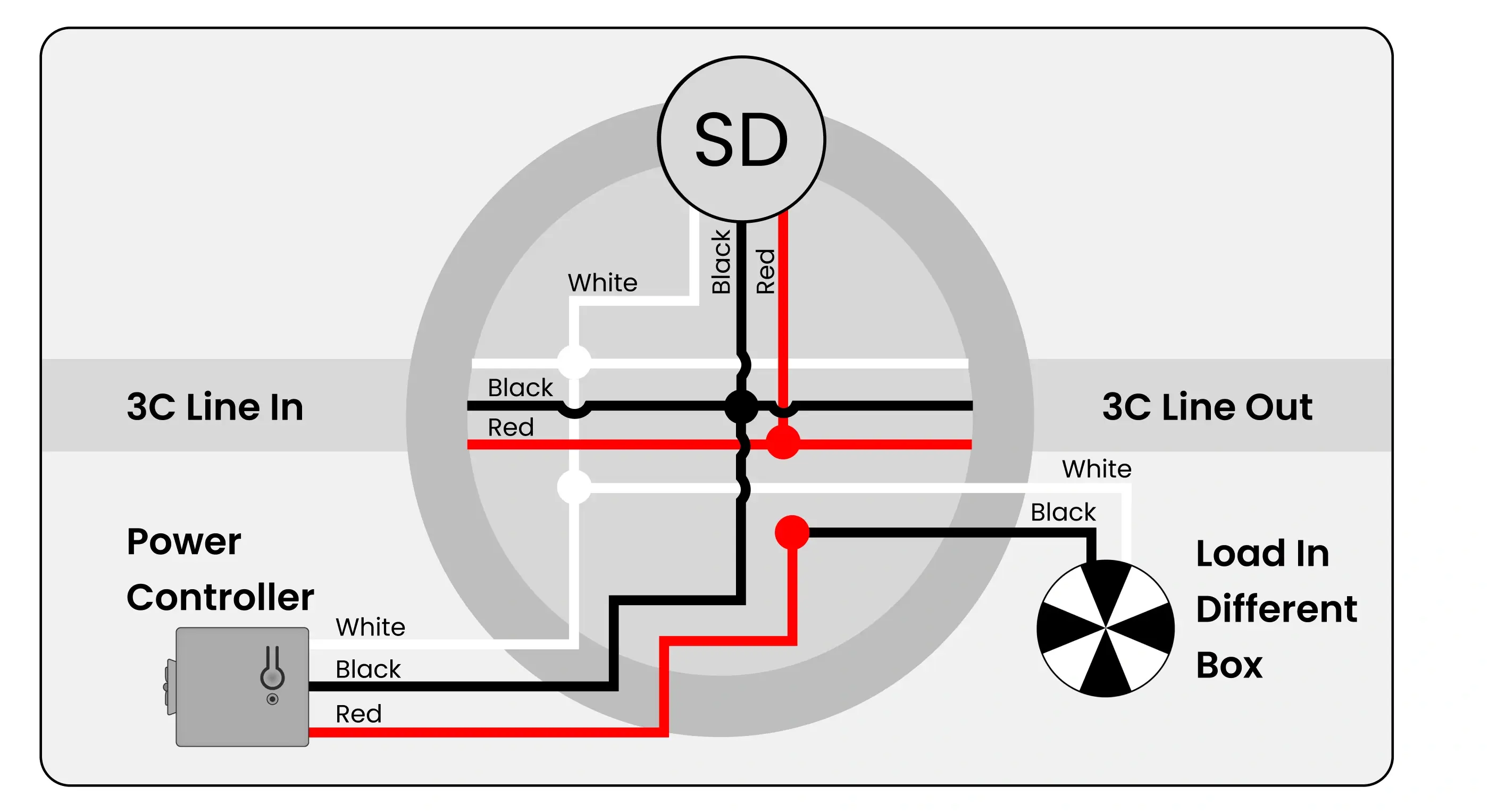

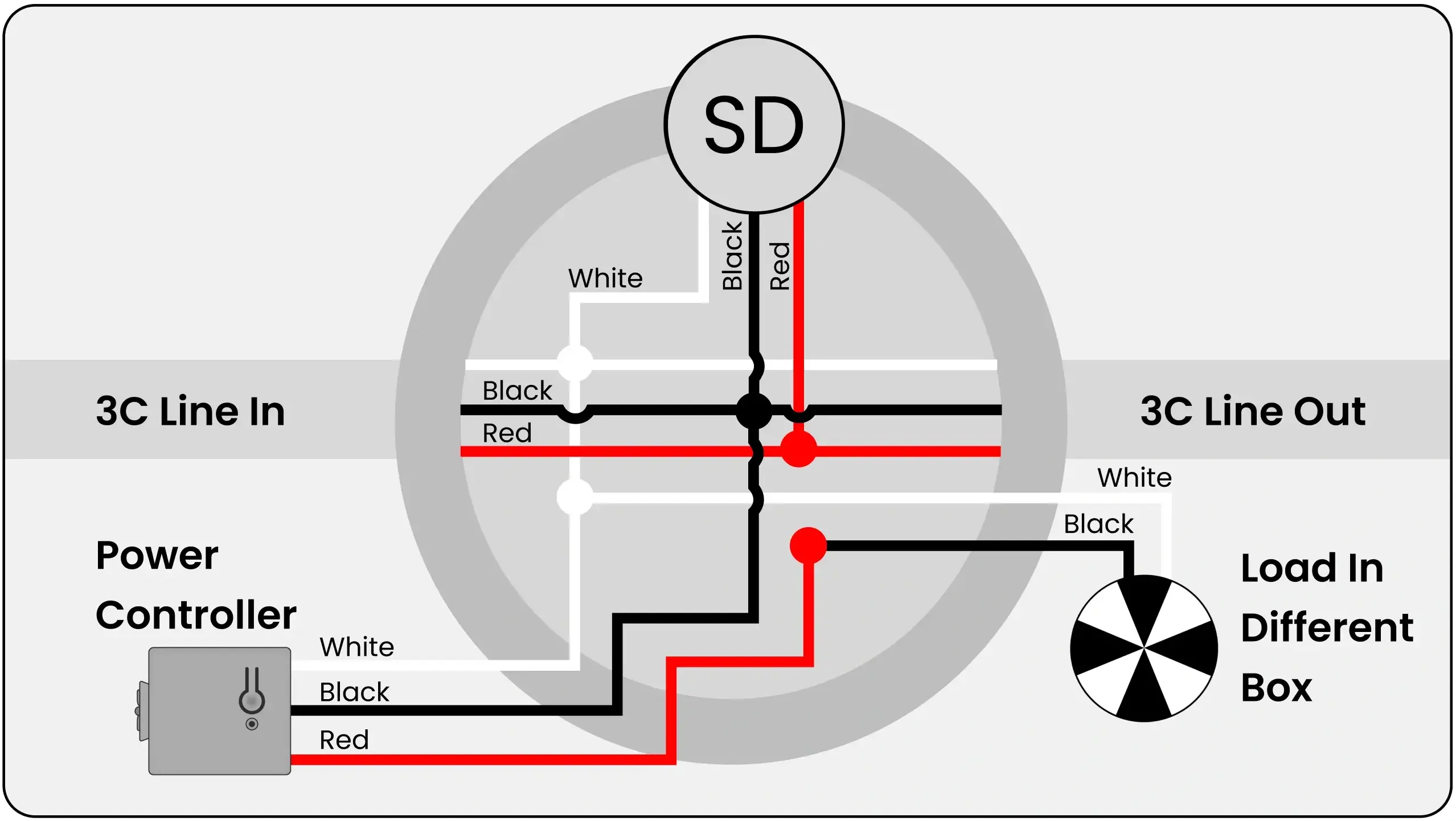

Controller Controlling Load in Different Box with Continuous Power for Next Box
Two Controllers in One Junction Box, Controllers Switching Different Loads
Example: Switching a bath exhaust fan AND vanity light with two controllers installed in a separate smoke detector box, with constant power to other boxes (plugs).

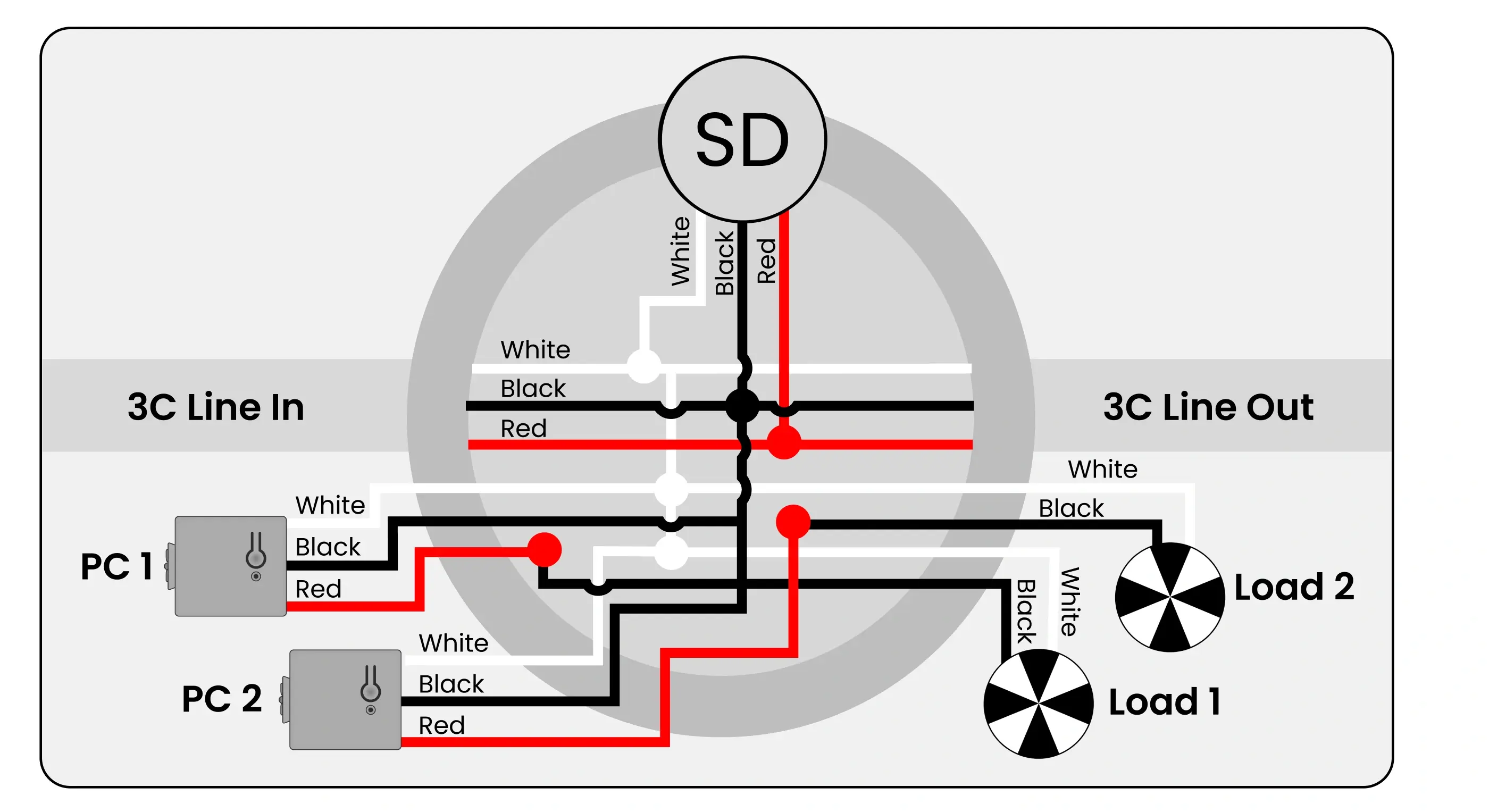

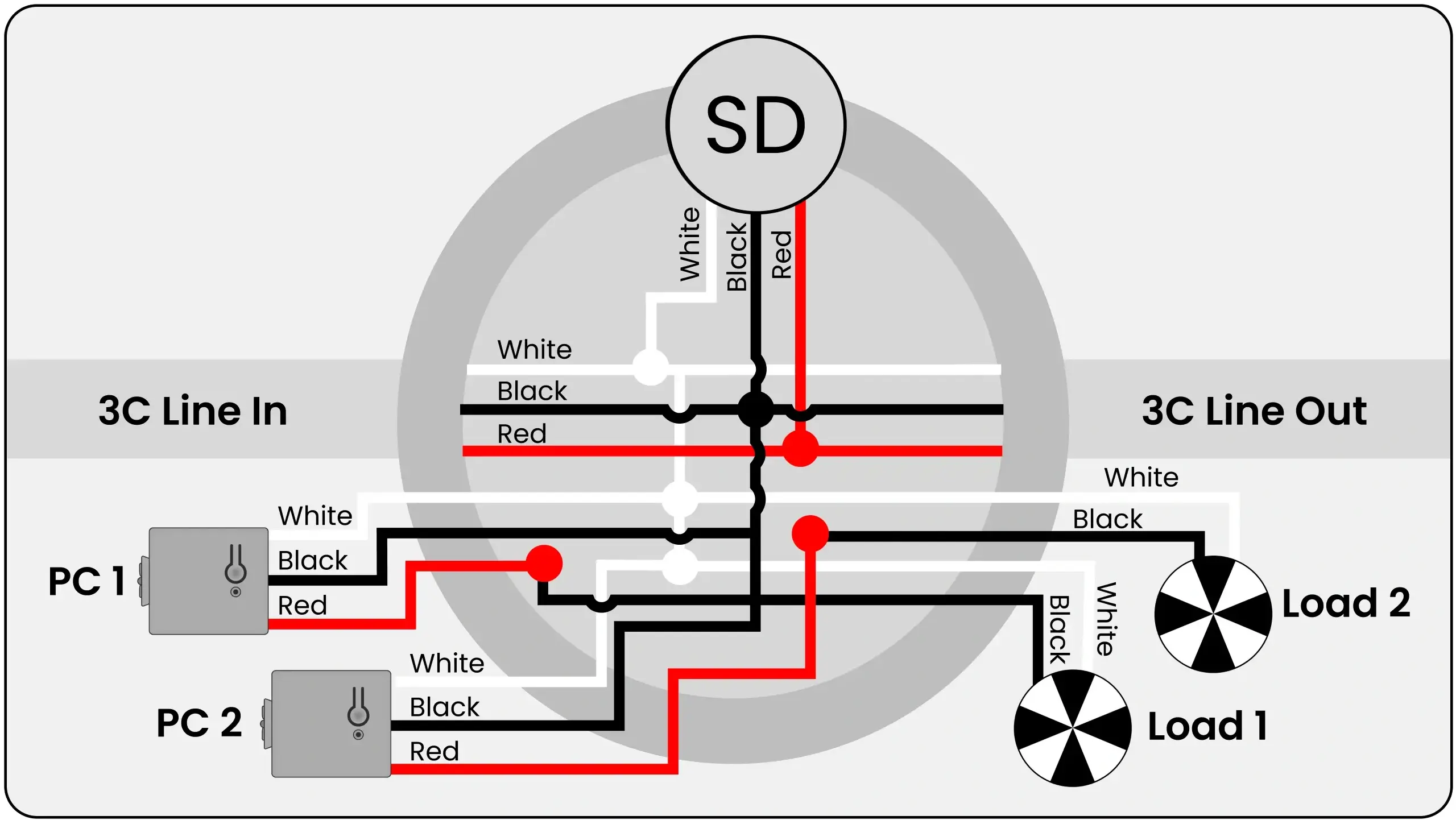

Two Controllers for Two Loads in Same Box

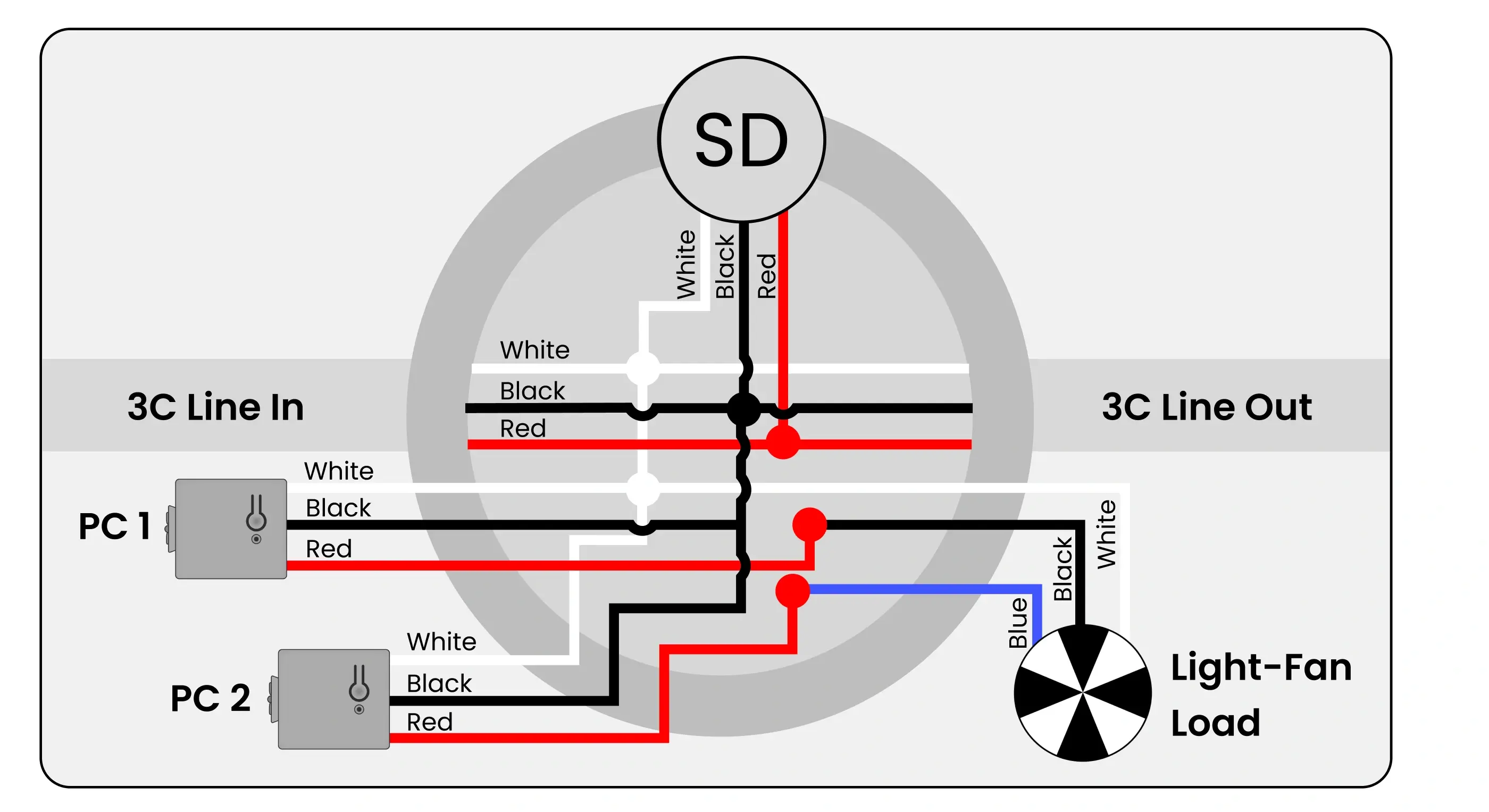

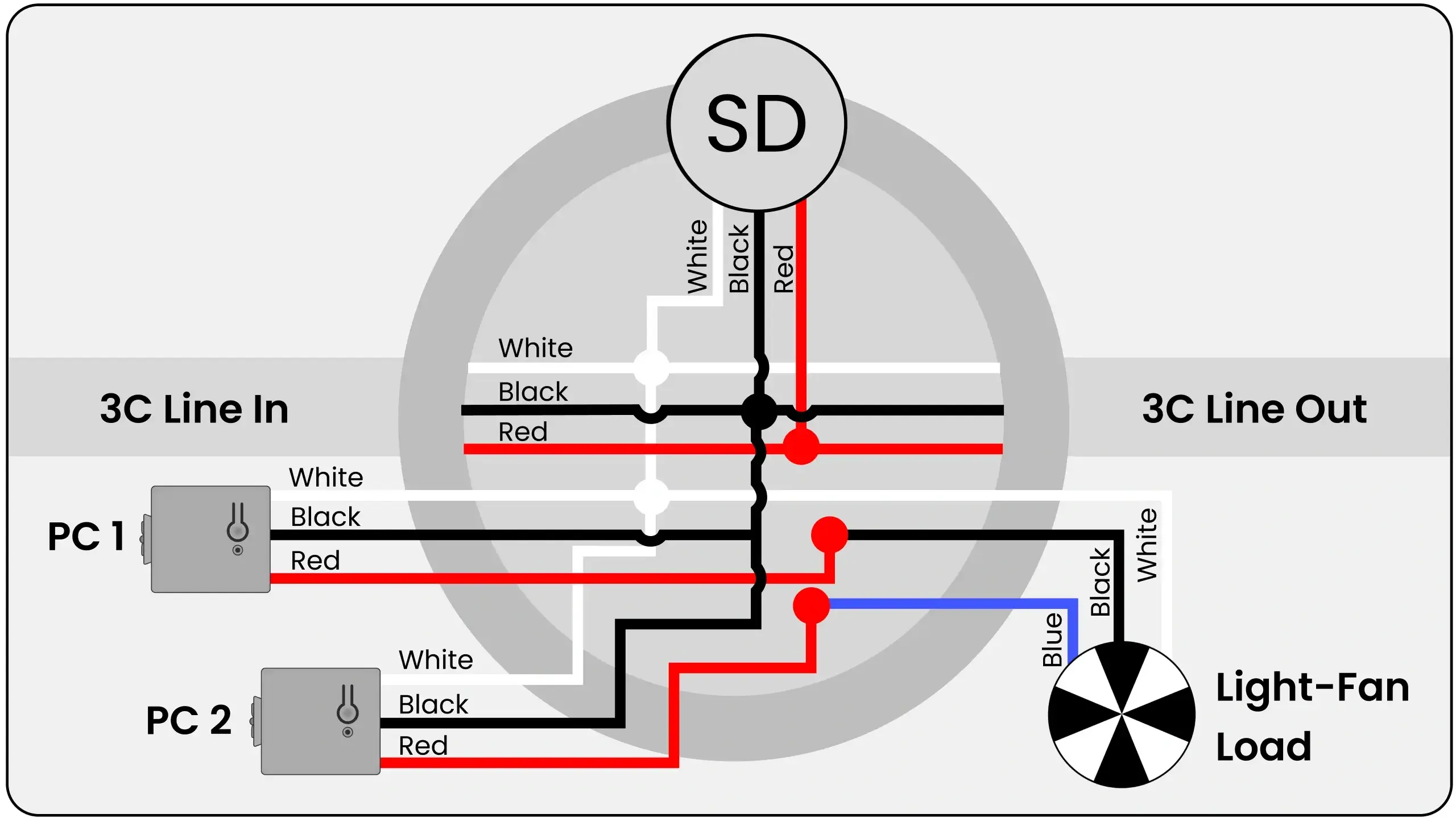

Two Controllers for Light + Fan Combo
Switching Plugs / Receptacles
Use a Levven controller to switch power for a receptacle.
Continue the Installation
Confirm these are done:
Electrical Plans Levven Quick Kit Installing Switches and Extra Controllers Blue Wall Plate Levven Q Gateway
